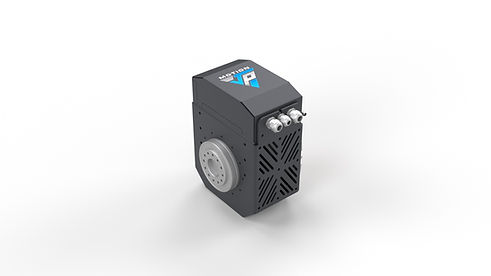

EvoDrive Powertrain

Modular Motion system for EVs

EvoDrive consolidates the three primary components of the powertrain system: motion, control, and torque converter, offering exceptional performance, a compact footprint, and lightweight design, all while achieving a remarkable power density.

reference for motor.jpg

Axial Flux Motor

  • Higher torque density – when compared to regular radial flux motors.


  • Improved power to weight ratio - ideal for EV applications.


  • Better cooling -  from the windings having greater air movement over the coils.


  • Excessive heat eliminated - since the axial flux motors do not have end turns.


  • Ideal shape - for manufacturing and affordability.


Highest power density

  • Silicon carbide (SiC) MOSFETs have a critical breakdown strength that is 10x greater than silicon.​

​

  • Operate at much higher temperatures than silicon, providing a higher current density.

​

  • Reduce switching losses and support higher switching frequencies.

​​

  • Handles higher voltage and power requirements while still saving space.​

​​

  • Extremely rugged and durable MOSFETs.


Light Planetary reducer

  • High efficiency – transmission efficiency up to 97% due to the low loss of power from a planetary gear train.

​

  • High torque - with a small volume, the planetary reducer can withstand higher torques than other reducers.

​

  • Cost savings - with a planetary reducer, the application can use a motor with a low power, greatly reducing the overall cost of the configuration.

​

  • Low noise - even large planetary gears have very low noise levels during operation.

Unit dimentions.png

Motion Unit Specification

  • Max Input Voltage: 800VDC

​​

  • Max Output Power: 150Kw

​​

  • Comm: RS232/CAN/ETH

​​

  • Max Output torque: 1150Nm (1)

​​

  • Gear ratio: 1:5 (2)

​​

  • Weight: 28Kg



    1. Depends on gear ratio

    2. Gear ratio can be changed per request
